JAMB Computer Studies 2023 Paper

Question : 5

Total: 81

Solution:

Concept:

An XOR (exclusive-OR) gate outputs true only when the two inputs are different.

Explanation:

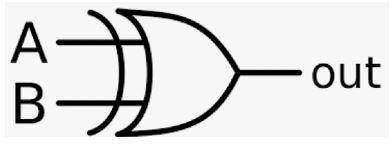

The given symbol is the standard XOR gate symbol.

Its output is

1

when the inputs are not equal:

A \ne B

Its output is

0

when the inputs are the same: both

0

or both

1

The Boolean expression is

Y = A \oplus B

This matches the behaviour of an XOR gate.

Answer:

C. XOR gate
